A product, a proof of concept, or a project: DOS 4.4 is each of them. You may wonder why we have decided to upgrade/enhance (or downgrade) DOS 3.3 (the January 1983 version), by providing that version, especially as we are more GS/OS users.
You may also wonder what differs in DOS 4.4 from DOS 3.3. We compile the answers in that page.
Why DOS 4.4?
- A product
- Yes, DOS 4.4 is a (nearly) final product, it works as intended and as DOS 3.3 does
- It even contains a new version of MUFFIN to copy your DOS 3.3 files onto a DOS 4.4 disk
- A proof of concept
- Could it be done?
- Yes, and that was fun to disassemble and make it work flawlessly!
- Do I learn something from it?
- Yes! The DOS 3.3 RWTS routines do not always count cycles correctly: the 3rd epilog nibble of the address field is barely written on disk
- Yes! DOS 3.3 is slow: the use of an intermediate buffer, even 2 or 3 (counting the OS buffers) slows down things A LOT
- Yes! Available space is tight.
- Yes! Thanks to Marcel Cottini's book, I have learned a lot on the inners of DOS 3.3: the OS, the File Manager, and the RWTS.
- Will I be able to do things differently?
- Yes! Why not add commands? I did not here
- Yes! Why not add support for lower-case characters? I did not here
- Yes! Why not add support for the 4*4 nibble encoding scheme? Hum... I did
- Could it be done?
- A project
- For a DOS upgrade
- And you can download DOS 3.4 below...
- DOS 3.4 is like the OS code of DOS 4.4 with the RWTS routines of DOS 3.3
- For the .WOZ format
- That format will be generated by the Applesauce device of John Keoni Morris
- That format will need a couple of new real disk formats to validate the digit from Applesauce
- So, I have decided to use start with DOS 4.4 to:
- Understand how the RWTS works
- Prepare new on-disk copy protections to answer to the topic above
- Test with a new format: 4*4 encoded nibbles sectors because:
- Read/Write routines are the base for fast read/write from/to disk
- And counting cycles is a mandatory step for writing on-disk protection schemes
- 4*4 is used for spiraling and other weird on-disk protection schemes (decoding is fast)
- So the 4*4 routines will be used for such a purpose
What is *NOT* DOS 4.4?
- An enhanced version of DOS 3.3 (the January 1983 edition)
- It does not contain new features, it does not recognize lower-case letters!
- Sorry!
What is *REALLY* DOS 4.4?
- Disk structure:
- A 5.25" floppy disk of 35 tracks of 10 4*4-encoded nibbles sectors, for a total of 89,600 bytes
- 5 tracks are reserved for DOS 4.4 (4 for the OS, 1 for the catalog), for a total 12,800 bytes
- 30 tracks are free of use, for a total of 76,800 bytes, more than the 64KB of our machines!
- Similar features:
- The same commands as in DOS 3.3: INIT, CATALOG and the others with the same parameters
- Similar limits:
- The use of an intermediate buffer to encode/decode nibbles from/to disk
- The use of an interleaving (physical/logical sector order on disk) table
- Works with 5.25" disks only
- Layer separation:
- DOS patches previously buried in the RWTS are now in the OS code
- The RWTS contains disk routines only!
What is the 4*4 encoding scheme?
- There are constraints to write data on an Apple disk. The format is called GCR:
- The first bit must be a 1
- No more than two consecutive 0s
- Bytes on disk are called nibbles
- One can play around the limits for great on-disk copy protections but that is not the purpose here
- So, to encode 256 memory bytes, we will use the 4*4 encoding scheme where:
- 8 bits will be divided into two nibbles of 4 bits, hence the name
- The first 4 bits are bits 7x5x3x1x, we shift right the bits: x7x5x3x1, we force x to be 1 (ORA #%10101010), we store that nibble
- The other 4 bits are bits x6x4x2x0, we force x to be 1 (ORA #%10101010), we store that nibble
- Our 2 nibbles are now on disk and match 1 byte from memory
- The DOS 3.2 encoding scheme is called 5*3 and requires 410 nibbles to store 256 bytes onto disk
- The DOS 3.3 encoding scheme is called 6*2 and requires 342 nibbles to store 256 bytes onto disk
- The DOS 4.4 encoding scheme is called 4*4 and requires 512 nibbles to store 256 bytes onto disk, we are really wasteful!
- As the number of bits we can write per track is limited, we have limited DOS 4.4 to 10 sectors per track
- As the drive speed is 300RPM, that we store a nibble every 32us, not counting the synchronization and specific nibbles for the address and data fields, how many 4*4 sectors can we put on a disk?
What are the changes?
- DOS 3.3 patches are now in the OS code ($1D00..$35FF)
- Due to a lack of space, the error routine and messages have been replaced and display the error code only
- The RWTS contains disk routines only!
- All write routines are now cycle accurate: 32us for standard nibbles and 40us for sync nibbles
- The read and write data field routines have been changed: 4*4 read/write routines

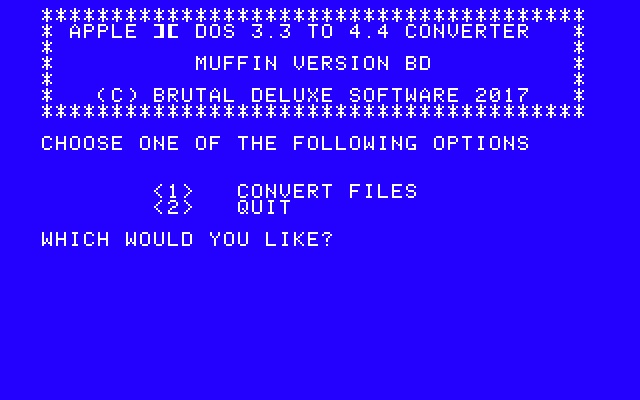

- MUFFIN (the DOS 3.2 to DOS 3.3 file copier) now copy DOS 3.3 files onto a DOS 4.4 disk
What could be the next steps?
- Make it faster and avoid using an intermediate buffer ($3E..$3F is the key)
- Rewrite the RWTS INIT routine by more reliable and faster code
- Deliver the working source code of DOS 3.4
- Make error messages more user friendly (err #0 is the beep, others are messages...)
- Play with the beast to write on-disk copy protection schemes...
What are the files provided?
- DOS 3.3 Slave disk
This is the A2R view of a slave DOS 3.3 disk created by John Keoni Morris with Applesauce to let you compare freshly formatted DOS 3.3 and DOS 4.4 disks - DOS 3.4 Master disk
This is the new DOS 3.4 master disk! - DOS 3.4 Master disk Source code
It contains all the Merlin source files on a ProDOS disk to let you assemble DOS 3.4 (use DOS34.MAKE.S or DOS34.DISK.S)
- DOS34.MAKE.S creates a binary file that matches the DOS code as if it were in memory (from $1B00..$3FFF)
- DOS34.DISK.S creates a binary file that matches the DOS code as if it were on disk (from $3600..$3FFF, $1B00..$35FF)
- DOS 4.4 Boot disk
This is a standard DOS 3.3-like boot disk that *MUST* be booted first to then let you boot a DOS 4.4 disk. See the next section. - DOS 4.4 Master disk

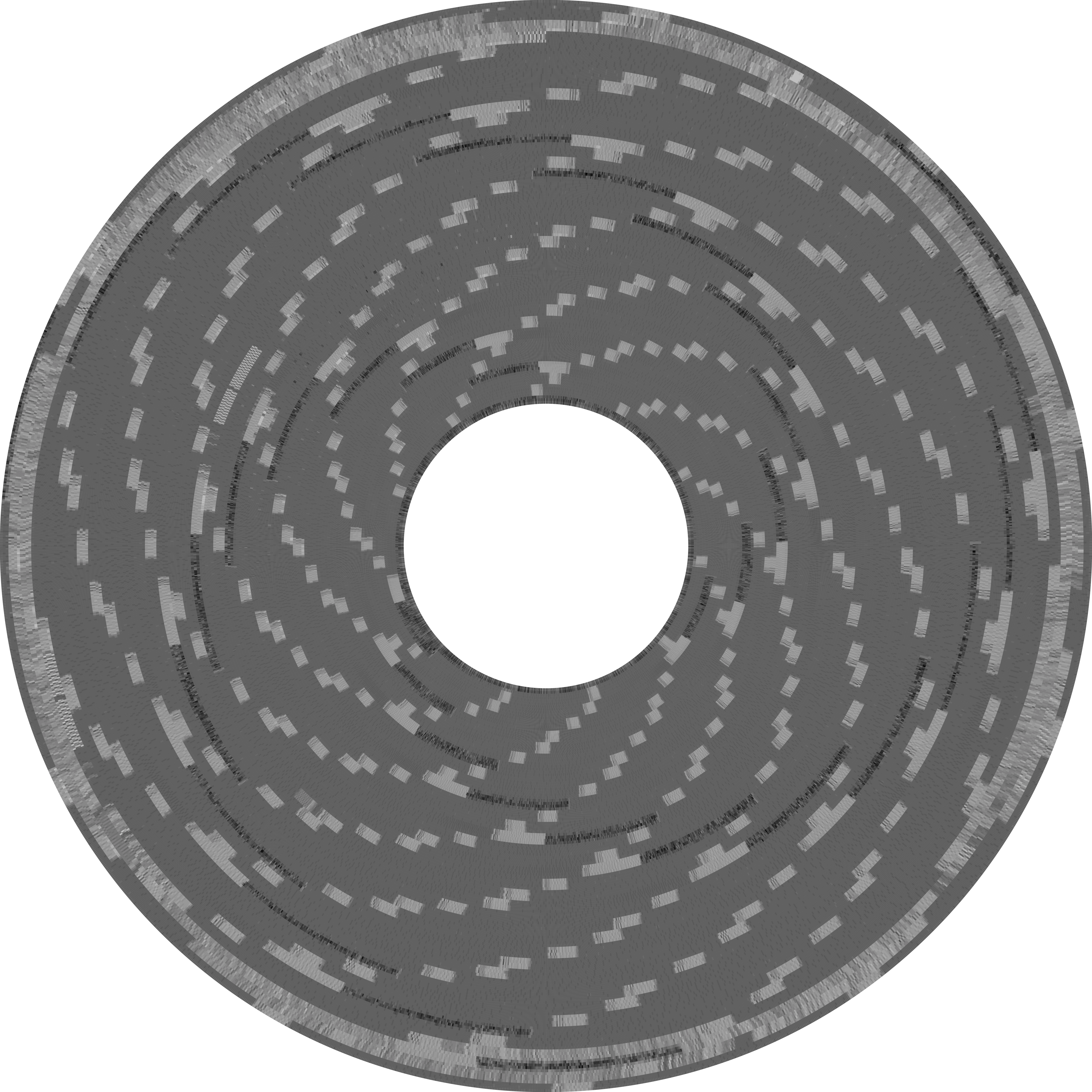

Provided in different formats (A2R, EDD, NIB), the disk image contains the master disk of DOS 4.4 in 4*4 encoding scheme
We found a late minute bug in the boot1 routine (it is corrected in the source code) but not on all disk images:
Prefer the FDI image over the other ones. Sorry :-( - DOS 4.4 Master disk Source code
It contains all the Merlin source files on a ProDOS disk to let you assemble DOS 4.4 (use DOS44.MAKE.S or DOS44.DISK.S)
- DOS44.MAKE.S creates a binary file that matches the DOS code as if it were in memory (from $1B00..$3FFF)
- DOS44.DISK.S creates a binary file that matches the DOS code as if it were on disk (from $3600..$3FFF, $1B00..$35FF)
How to use DOS 4.4?
The usage is pretty simple on a real machine or under emulation:- Boot DOS 4.4 Boot disk.dsk
- Remove the disk from the drive
- Insert DOS 4.4 Master disk.fdi or DOS 4.4 Master disk.nib
- Press 1-7 to boot from slot 1-7 (we suppose you will press 6)

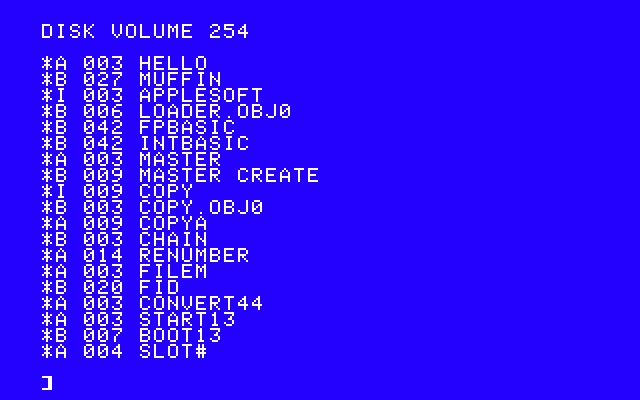

- Then, do what you want (CATALOG, INIT, BRUN...)
References
- A2R format by Applesauce by John Keoni Morris (thank you a lot, John!)
- EDD format by i'm fEDD up by Brutal Deluxe Software (it was useful, wasn't it?)
- NIB format by ADTPro by David Schmidt (best software of the century)
- Book: Apple II DOS 3.3 Guide du programmeur, Marcel Cottini, SYBEX
- Book: Systèmes d'Exploitation et Systèmes de Protection sur APPLE II, Jean-Pierre Lagrange, Micro Application
